Bridge Cranes, Free Standing Workstation Bridge Cranes
Gorbel Distributor, Ceiling Mounted Workstation Bridge Cranes, Accessories

Free standing bridge cranes are floor supported systems that do not put stress on the building’s overhead structure. Installation is more straight forward, and these cranes are also easier to relocate in the future. With ceiling mounted bridge cranes, supporting steel does not interfere with the handling operation. Ceiling mounted systems require a building with an adequate overhead structure to hang the crane. Taylor Material Handling & Conveyor offers a Gorbel, Cleveland Tramrail, and Demag bridge cranes, as an authorized distributor/dealer. Rely on our over 50 years experience in lifting solutions. Interested in a price quote? Contact us today for a no-obligation discussion of your needs. We can meet with you at your location, if required.

Bridge Cranes

  • Gorbel Free Standing Workstation Bridge Crane

    Gorbel Free Standing Work Station Bridge Cranes can handle the toughest overhead lifting tasks. These cranes, which can be installed on any normal 6-inch reinforced conrete floor, feature a pre-engineered modular design that can easily expand as your work centers expand.

    Capacities from 250 to 4000 lbs. with bridge lengths from 4 ft to 34 ft. Designed to be completely free standing and do not require sway bracing. Multiple bridges can be installed on one runway system to increase productivity and flexibility in a work area.

  • Gorbel Ceiling Mounted Workstation Bridge Crane

    When a work area must be free from any support structures that may interfere with operations. Ceiling Mounted Bridge Cranes are an excellent solution to keeping floors clear.

    Handling capacities up to 4000 lbs. with overall lengths up 34 ft., these systems are pre-engineered and modularly designed for easy installation, expansion and relocation. Customers can install multiple bridges along one set of runways and greatly increase their productivity.

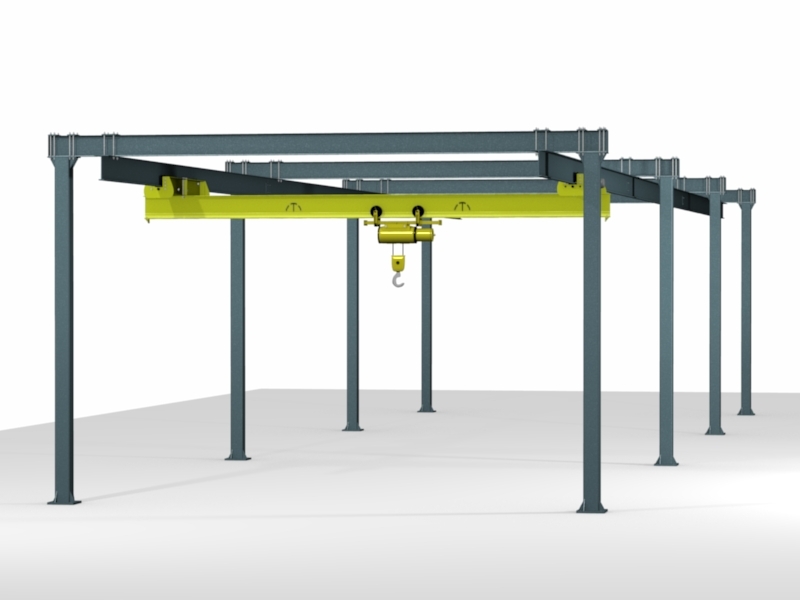

  • Tarca Pre-Engineered Crane Systems

    Gorbel also offers pre-engineered Floor Supported and Ceiling Mounted Tarca Crane Systems in standard capacities from 2 to 5 tons. Tarca Systems are made with Tarca Track, which has a three piece welded construction with a compound section of mild steel top flange and web and a specially rolled high-carbon steel lower rail.

    Tarca is known for consistenly straight rail sections and durable, high quality components. Tarca offers unmatched versatility, durability and ease of installation.

Bridge Crane Accessories

  • Telescoping Bridge Cranes

    Gorbel’s telescoping bridge crane allows for extension outside the normal reach of a Gorbel Work Station Bridge Crane. The telescoping bridge is designed for effortless movement and easy installation. The bridge features an adjustable leveling device and anti-kickup wheels to prevent binding of the bridge when telescoped.

    Applications for a telescoping bridge include reaching into adjacent work cells to transfer material, loading parts into a machine opening, and reaching out beyond the building column or under mezzanines.

  • Gorbel Interlock Transfer Crane

    Gorbel’s interloc/transfer cranes allow loads to be transferred from a bridge crane to monorail spurs and vise-versa. The interlock/transfer cranes are fast and easy to use. The bridge only engages the interlock when the operator actuates it so they do not impede the workers when not in use.

    The interlock is designed so the trolley stops will lock and not allow the passage of the hoist trolley until the bridge and monorail are in alignment and mechanically linked. The bridge and monorail spur cannot be seperated until the trolley stops are fully closed and in the locked position. They can be easily adapted to an existing Gorbel Work Station Bridge Crane.

  • Tarca Pre-Engineered Crane Systems

    Gorbel’s tractor drives provide motorized movement on new or existing enclosed track Gorbel Work Station Bridge Cranes and Monorails. The drives are designed for indoor use and available for steel track.

    Applications for tractor drives include work areas where the operator cannot stand next to the load to move it by hand or during operations with high cycle times that require frequent lifting of heavy, awkwardly shaped loads.
